Version A: Technical Reference

Honda S2000 AP1

USDM Reference • 2000–2003
FR Layout F20C Naturally Aspirated 6-Speed Manual RWD ~2,800 lb

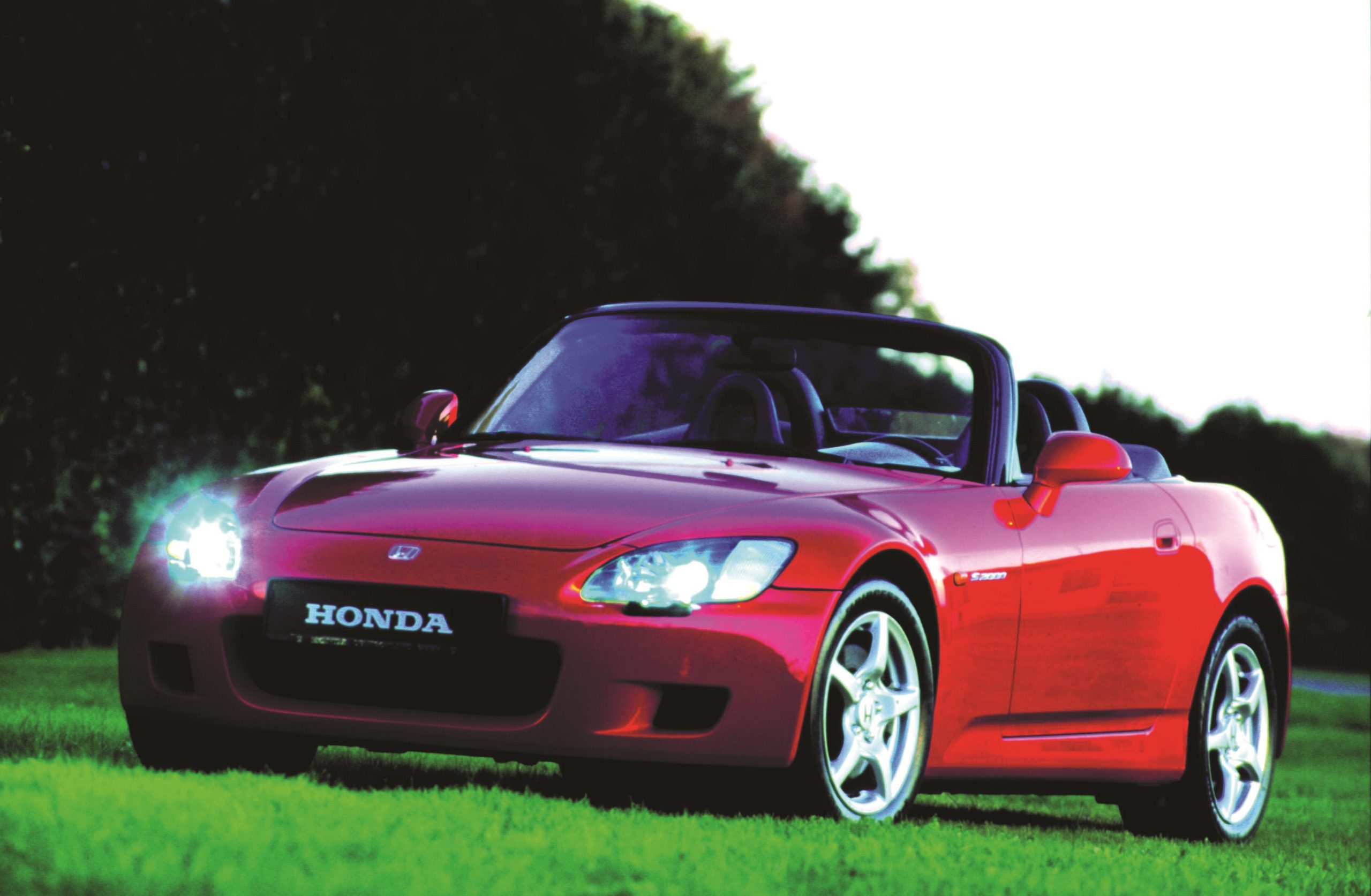

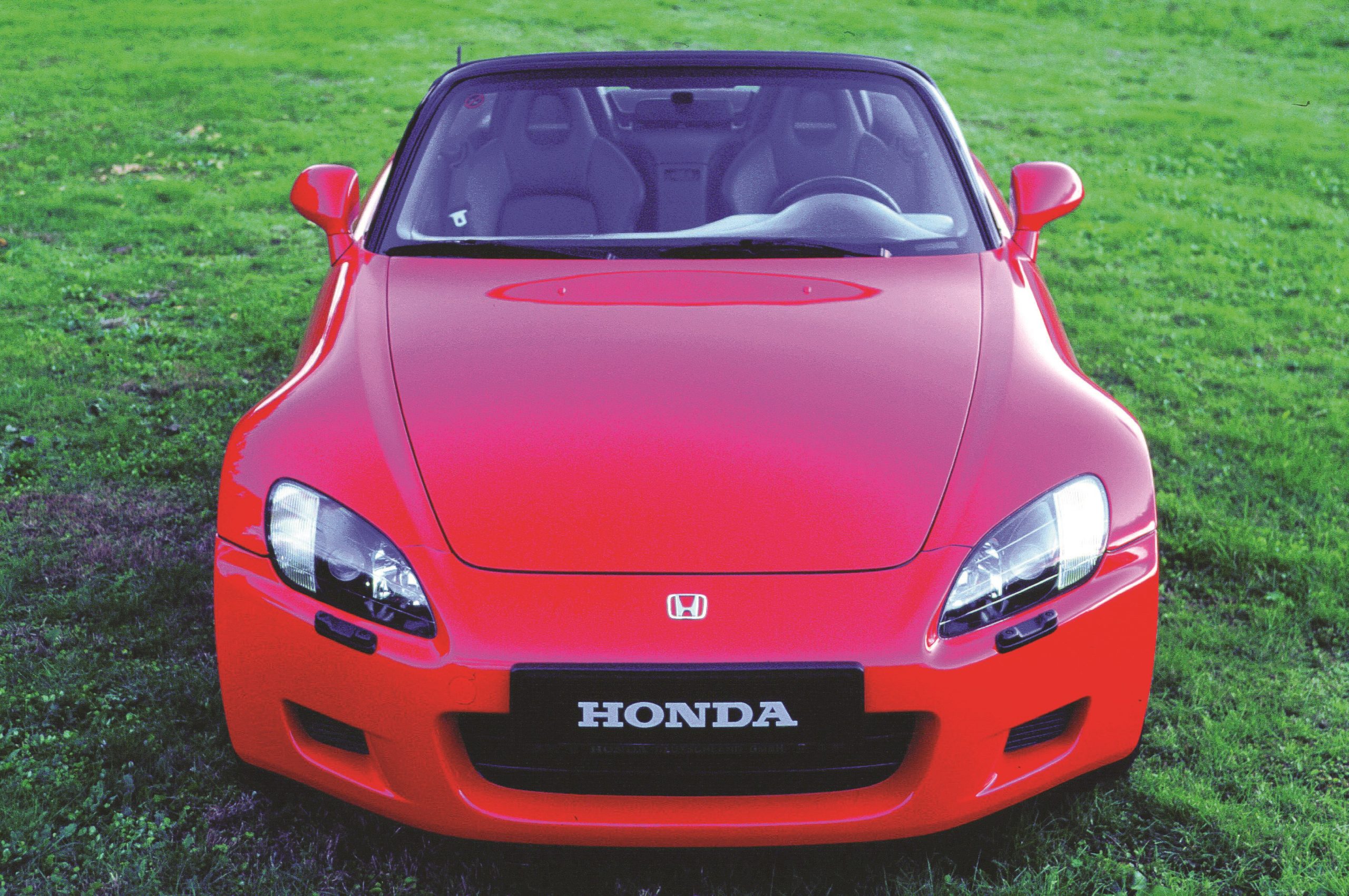

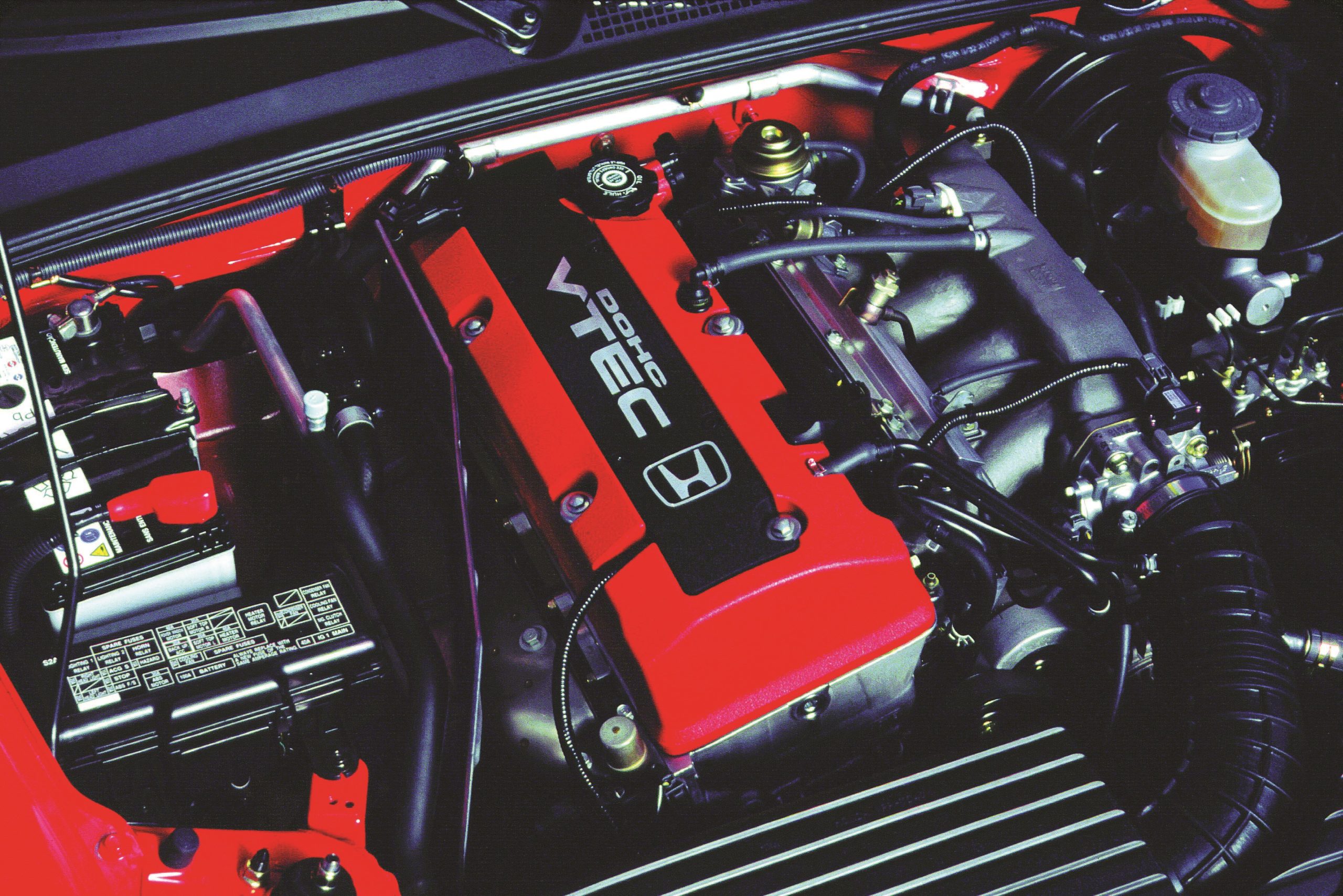

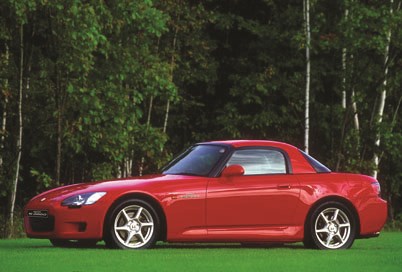

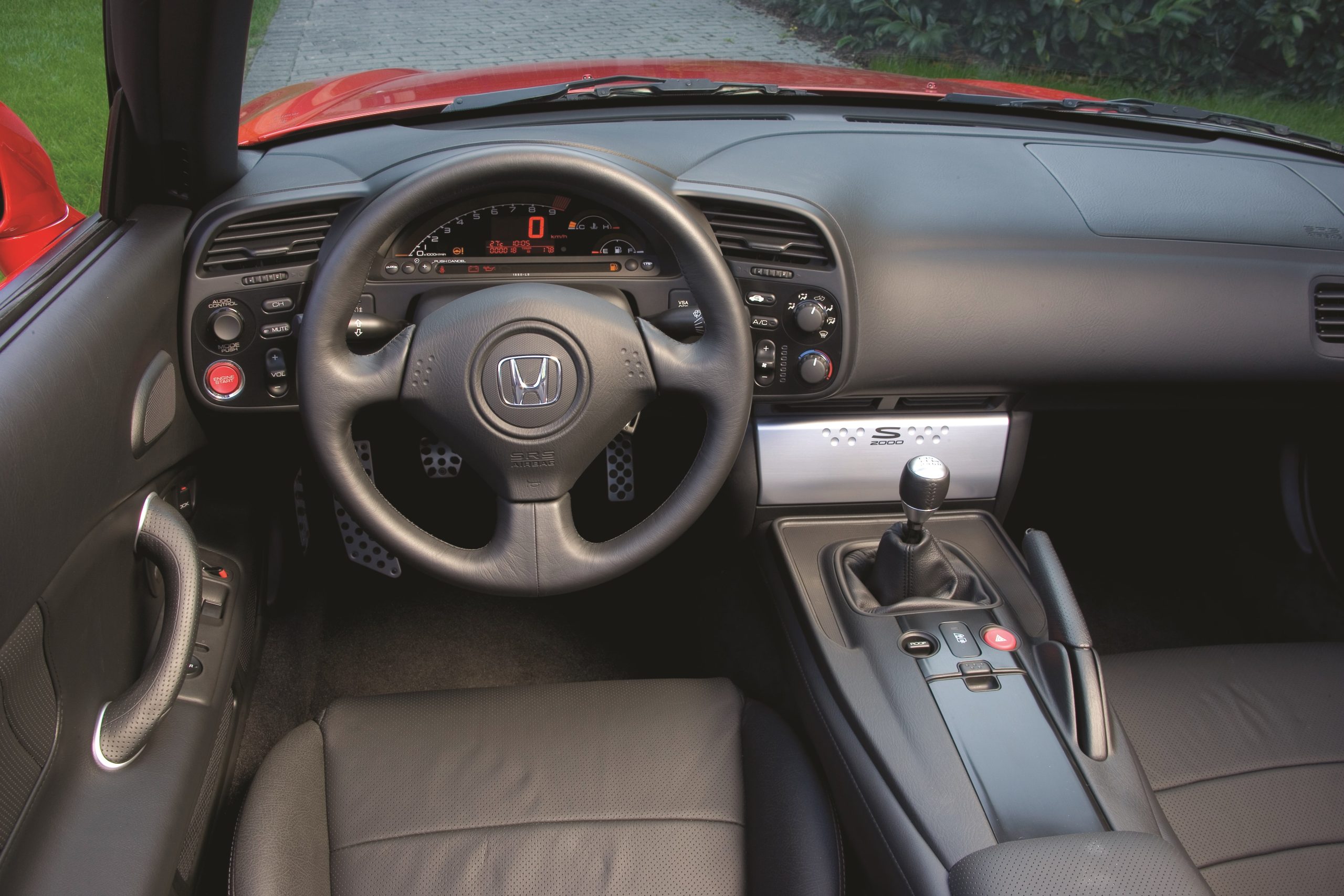

Honda S2000 AP1 factory media image Honda S2000 AP1 factory media image Honda S2000 AP1 factory media image Honda S2000 AP1 factory media image Honda S2000 AP1 factory exterior image Honda S2000 AP1 factory detail image Honda S2000 AP1 factory media image Honda S2000 AP1 factory media image

Core Specifications

ModelHonda S2000 AP1
MarketUSDM
Model Years2000–2003
Body Style2-door roadster
LayoutFront-engine, rear-wheel drive
Transmission6-speed manual
EngineF20C 2.0L DOHC VTEC inline-4
Curb WeightApprox. 2,800 lb

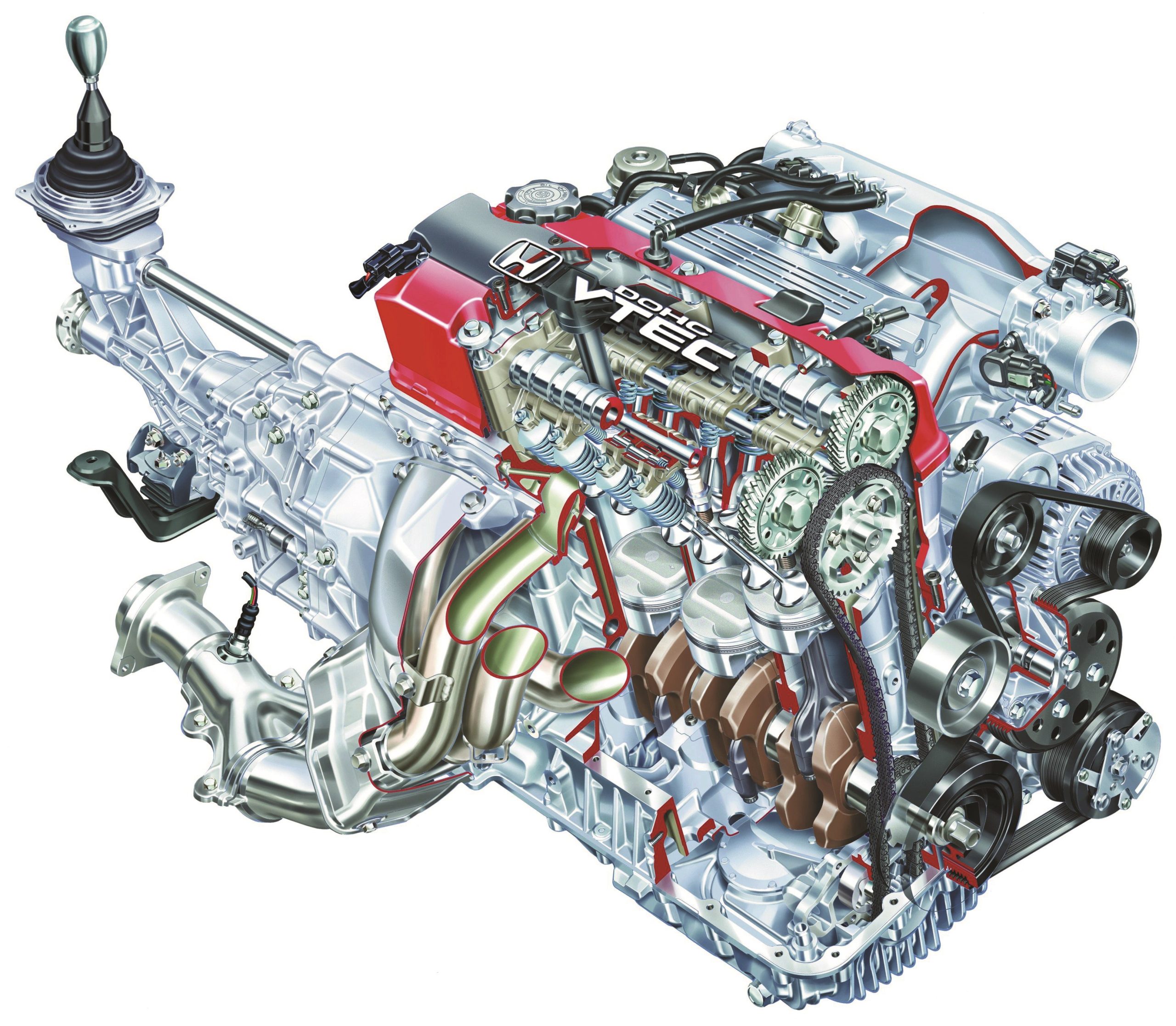

Engine Specifications

Engine CodeF20C
ConfigurationInline-4
Displacement1,997 cc
AspirationNaturally aspirated
ValvetrainDOHC VTEC, 16 valves
Horsepower240 hp @ 8,300 rpm
Torque153 lb-ft @ 7,500 rpm
Redline9,000 rpm

Model-Year Changes

2000
  • USDM launch year for the Honda S2000.
  • F20C 2.0L naturally aspirated inline-4.
  • 6-speed manual transmission.
2001
  • AP1 continued with the same core drivetrain configuration.
2002
  • Glass rear window introduced, replacing the earlier plastic rear window.
2003
  • Final USDM AP1 model year before the 2004 AP2 revision.
  • F20C engine specification remained 240 hp and 153 lb-ft.

Factory Colors

Sebring Silver Metallic
Berlina Black
Grand Prix White
New Formula Red
Suzuka Blue Metallic
Yellow Pearl

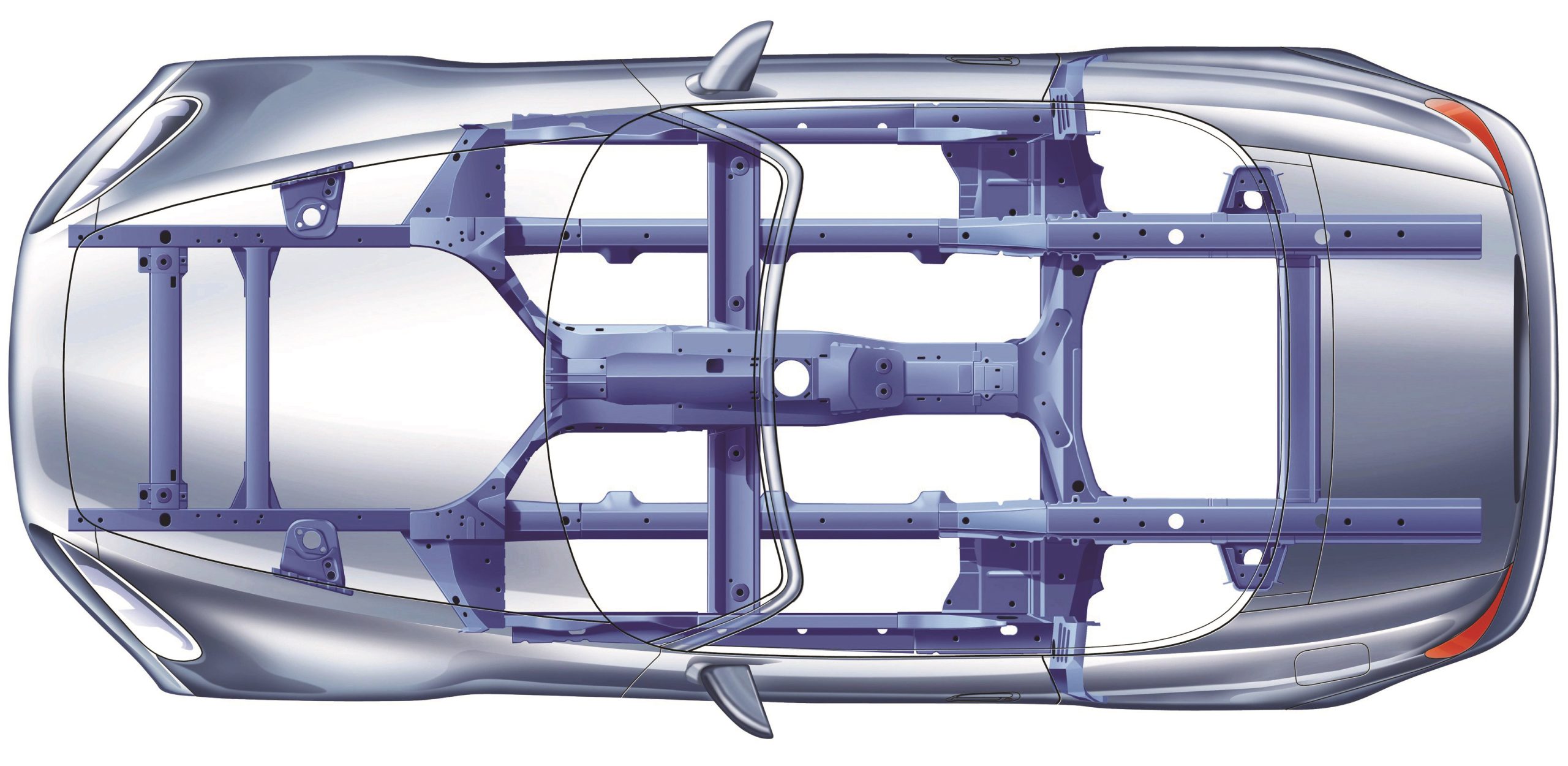

Dimensions & Chassis

Wheelbase94.5 in
Length162.2 in
Width68.9 in
Height50.6 in

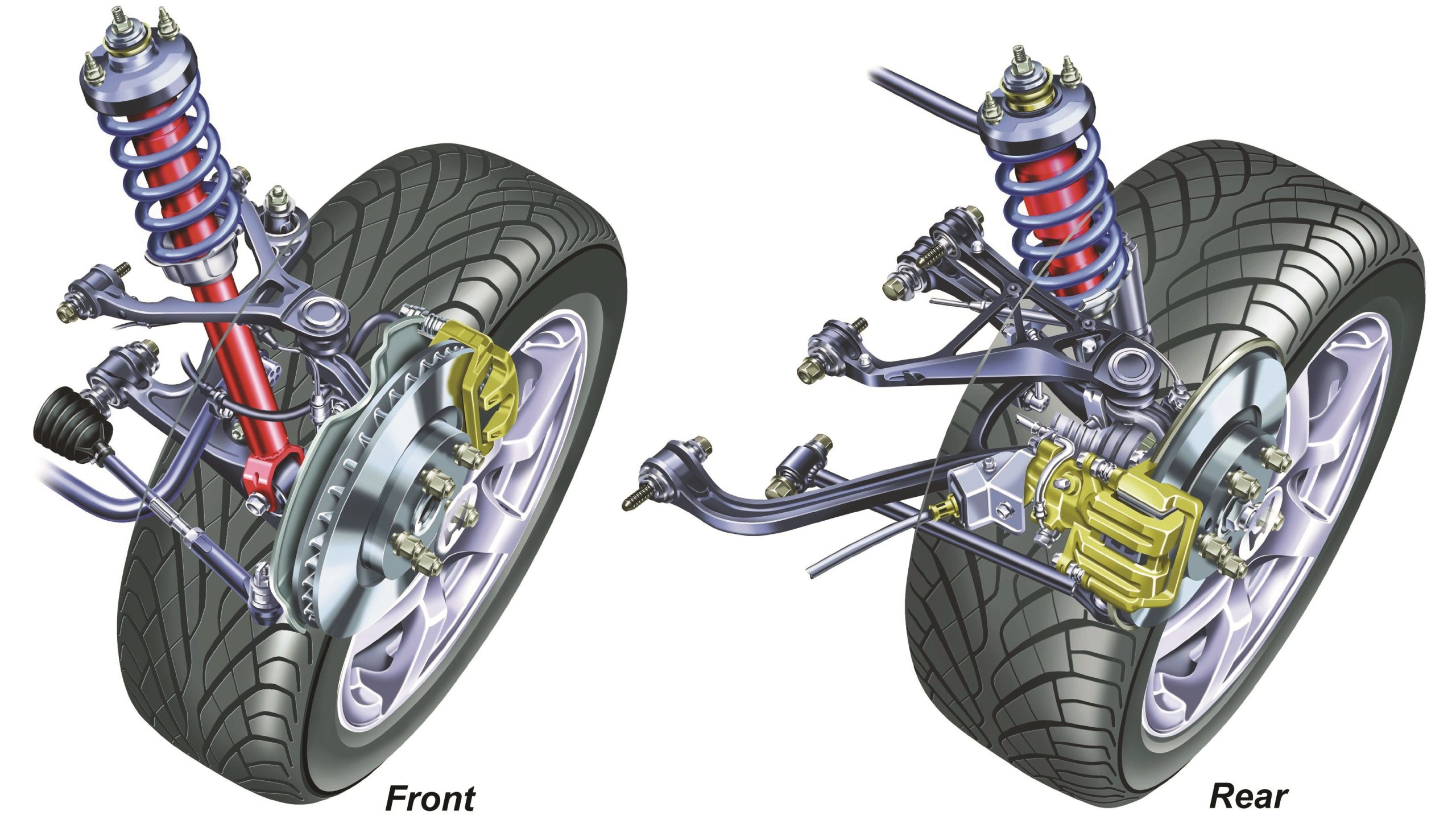

SuspensionDouble wishbone front and rear
Limited-Slip DifferentialStandard

Wheels & Tires

Front Tires205/55R16
Rear Tires225/50R16
Wheel Diameter16 in

Factory Documentation

Honda Factory Press Release Honda Technical Specifications USDM Brochure / Sales Literature Factory Media Archive
Version B: Premium Enthusiast Reference

Honda S2000 AP1

USDM Reference • 2000–2003
FR Layout F20C Naturally Aspirated 6-Speed Manual RWD
Power240 hp
Redline9,000 rpm
Weight~2,800 lb
Honda S2000 AP1 factory media image Honda S2000 AP1 factory media image Honda S2000 AP1 factory media image Honda S2000 AP1 factory media image Honda S2000 AP1 factory exterior image Honda S2000 AP1 factory detail image Honda S2000 AP1 factory media image Honda S2000 AP1 factory media image

Core Specifications

ModelHonda S2000 AP1
MarketUSDM
Model Years2000–2003
Body Style2-door roadster
LayoutFront-engine, rear-wheel drive
Transmission6-speed manual
EngineF20C 2.0L DOHC VTEC inline-4
Curb WeightApprox. 2,800 lb

Engine Specifications

Engine CodeF20C
ConfigurationInline-4
Displacement1,997 cc
AspirationNaturally aspirated
ValvetrainDOHC VTEC, 16 valves
Horsepower240 hp @ 8,300 rpm
Torque153 lb-ft @ 7,500 rpm
Redline9,000 rpm

Model-Year Changes

2000
  • USDM launch year for the Honda S2000.
  • F20C 2.0L naturally aspirated inline-4.
  • 6-speed manual transmission.
2001
  • AP1 continued with the same core drivetrain configuration.
2002
  • Glass rear window introduced, replacing the earlier plastic rear window.
2003
  • Final USDM AP1 model year before the 2004 AP2 revision.
  • F20C engine specification remained 240 hp and 153 lb-ft.

Factory Colors

Sebring Silver Metallic
Berlina Black
Grand Prix White
New Formula Red
Suzuka Blue Metallic
Yellow Pearl

Dimensions & Chassis

Wheelbase94.5 in
Length162.2 in
Width68.9 in
Height50.6 in
SuspensionDouble wishbone front and rear
Limited-Slip DifferentialStandard

Wheels & Tires

Front Tires205/55R16
Rear Tires225/50R16
Wheel Diameter16 in

Factory Documentation

Primary source materials for specifications, model-year changes, imagery, and factory configuration details.

Honda Factory Press Release Honda Technical Specifications USDM Brochure / Sales Literature Factory Media Archive
